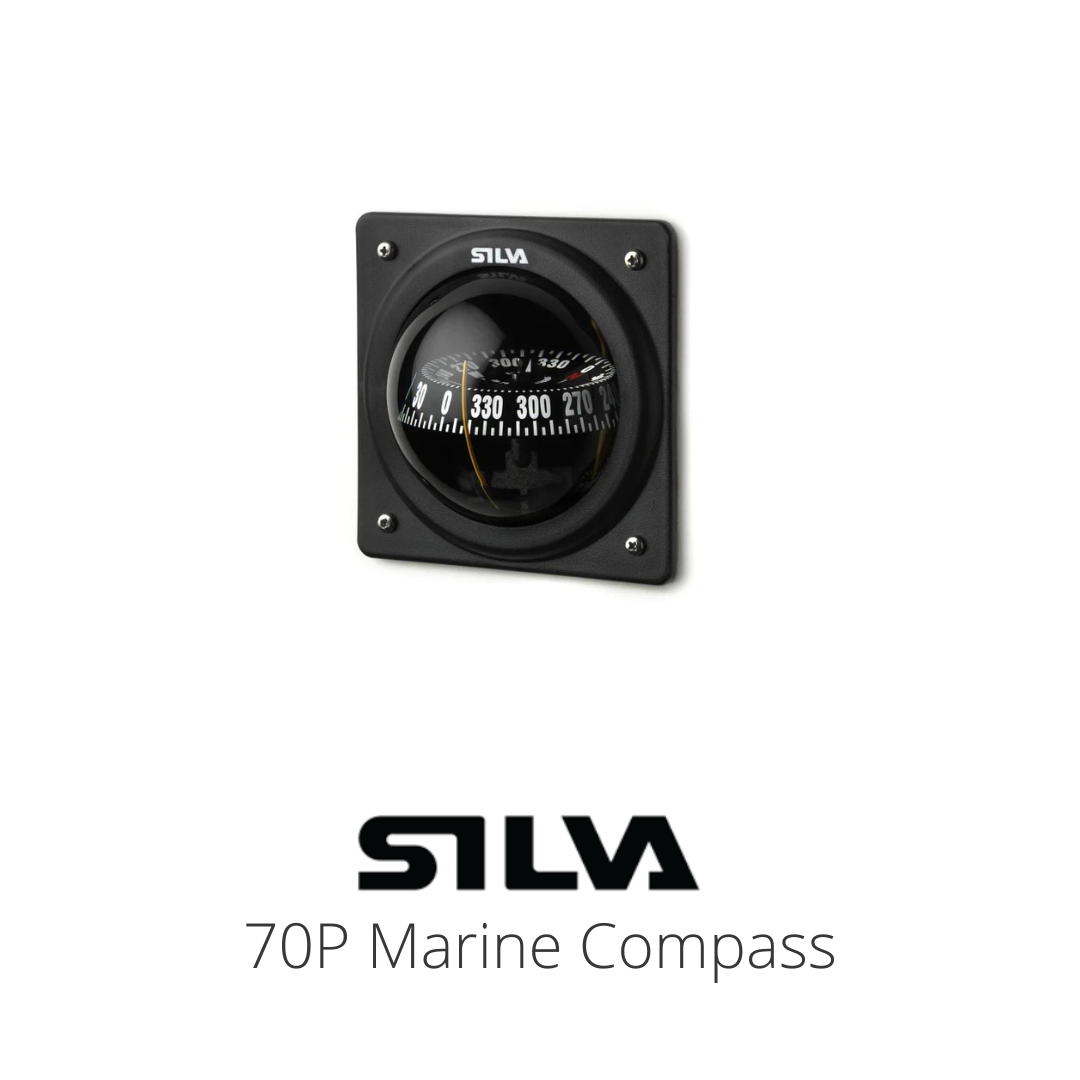

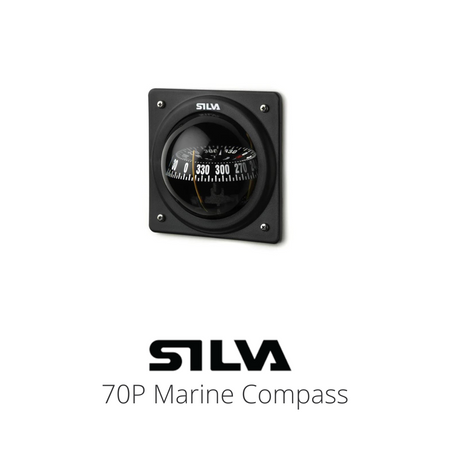

SILVA 70P SMALL BOAT MARINE COMPASS

• DOUBLE SCALES
Can be read from front and above
• SUITABLE FOR ALL BOATS
Fits in all boat types
• CURVED LUBBER LINES
Accurate reading from different angles
• COMPACT SIZE
Small and flexible

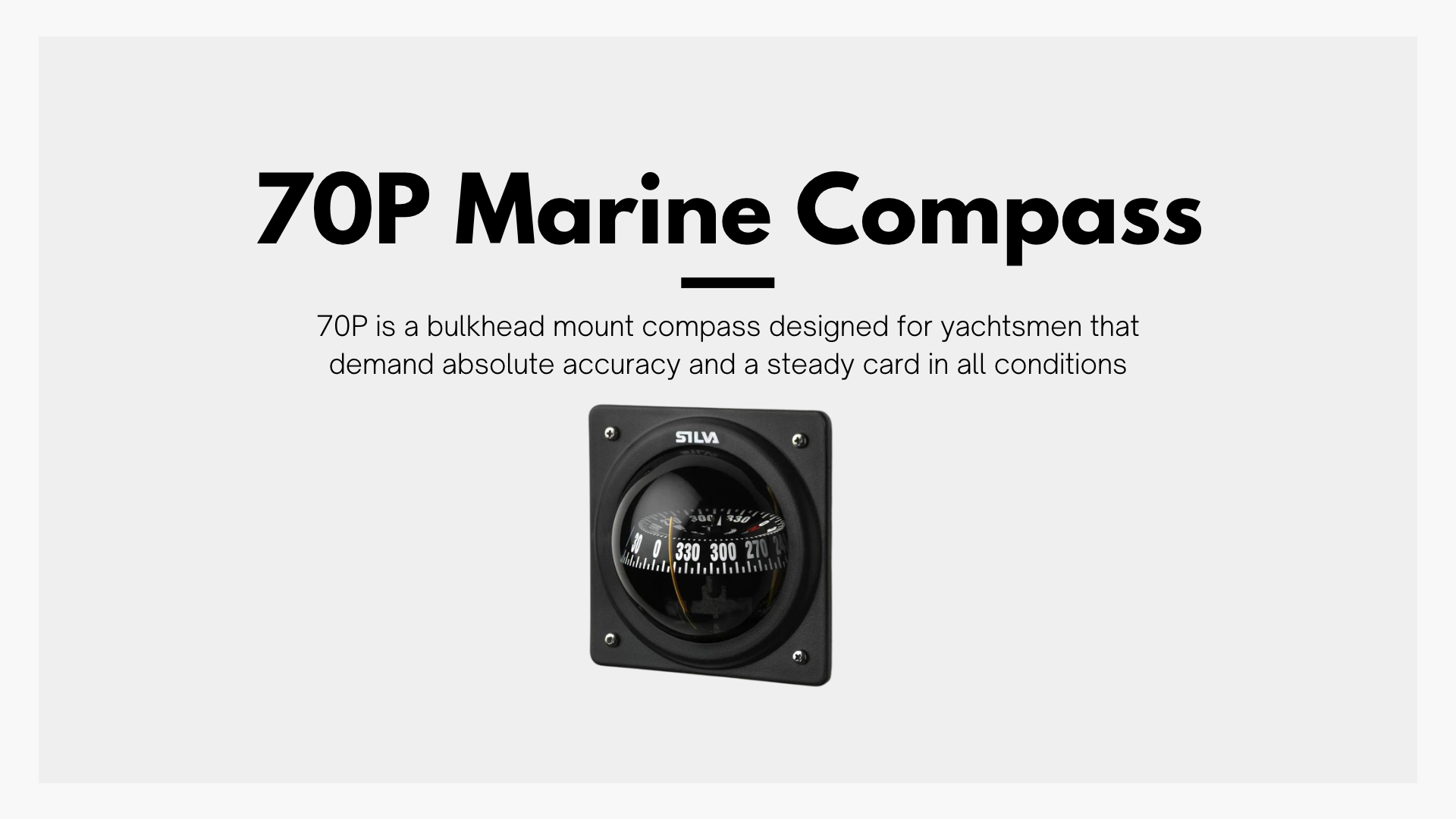

70P is a bulkhead mount compass designed for yachtsmen that demand absolute accuracy and a steady card in all conditions

The compass handles unlimited slope of the keel line and a 30º heeling angle. The curved lubber line enables swift and clear reading at a glance without parallax errors. With a main steering scale on the horizontal part and direct reading on the vertical edge,

70P is ideal for boats with a sitting as well as a standing helmsman. It can be mounted at most angles and its compact size (70 mm) makes it suitable for smaller boats.

Specifications:

Accuracy ~ +/- 17.8mils/1°

Apparent card diameter ~ 70mm

Built-in compensator ~ Optional

Card type ~ Cone

Compatibility ~ Kayaks, powerboats, sailboats

Heeling Angle ~ Roll: 30° Pitch: 30°

Illumination ~ Optional

Lubber lines ~ Centre

Materials ~ Acrylic, PC/ABS

Mounting ~ Bulkhead

Mounting angle ~ +10° to +100

Sapphire jewel bearing for friction-free movement of the compass needle ~ Yes

Size ~ 95x72 mm

Temperature operating range ~ -10 to +70 °C

Variant ~ Magnetic North

Water resistant ~ Yes

Weight ~ 344g
